ISO4532 Tester For Resistance To Impact By Small-Diameter Ball

Name: ISO4532 Tester For Resistance To Impact By SmallDiameter Ball
Brand: kerang
Price: 1 USD

China ISO4532 Tester For Resistance To Impact By Small-Diameter Ball wholesale

Brand Name : kerang

Model Number : SH-16

Certification : Third party calibration certificate(cost additional)

Place of Origin : CHINA

MOQ : 1SET

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 20 sets/month

Delivery Time : 5-7 days

Contact Now

Tester For Resistance To Impact By Small-Diameter Ball

SH-16

Standard:

ISO4532 Vitreous and porcelain enamels-Determination of the resistance of enameled articled to impact-Pistol test, DIN ISO4532 (DIN51 155), ISO4586-2 High-pressure decorative laminates (HPL, HPDL)-Sheets based on thermosetting resins (usually called laminates)—Part 2: Determination of properties clause 24.3 Figure 10, Figure 11, ISO438-2.

Test Scope:

Impact testing for High-pressure decorative laminates-Sheets made from thermosetting resins (HPL), Vitreous and porcelain enamels,

Parameters:

1. Impact energy: 0~90N/cm adjustable

2. Scale: 2N/cm

3. The diameter of impact steel ball Φ5mm

4. With round support fixture, used to fix the impact test

5. The rating after 5 shocks shown below:

Class	Spring Force N
1	≥12
2	≥15
3	≥20
4	≥25
Only applicable for thin laminates ≤ 2mm

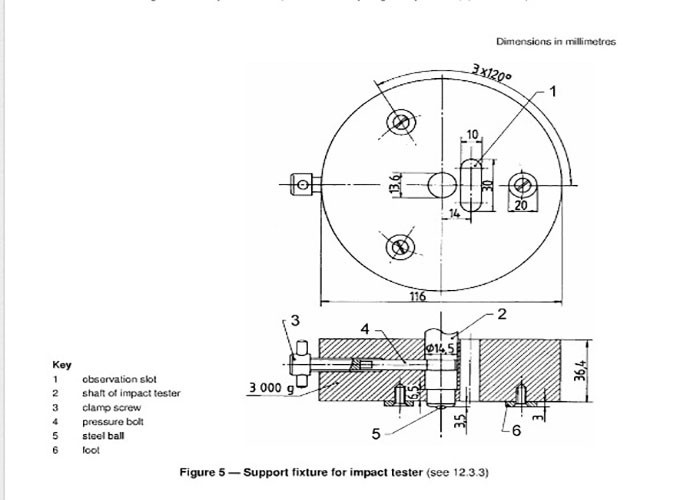

Figures For Reference:

Product Tags:

ISO4532 Impact testing device

2N/cm Impact Tester

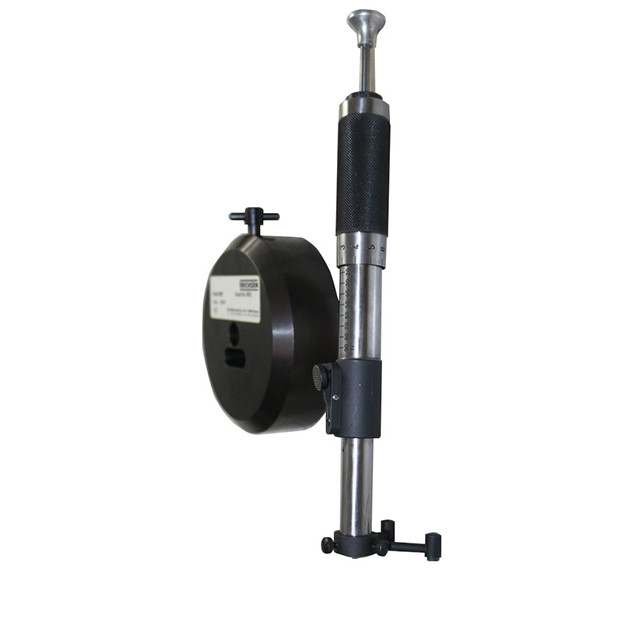

ISO4532 Tester For Resistance To Impact By Small-Diameter Ball Images
